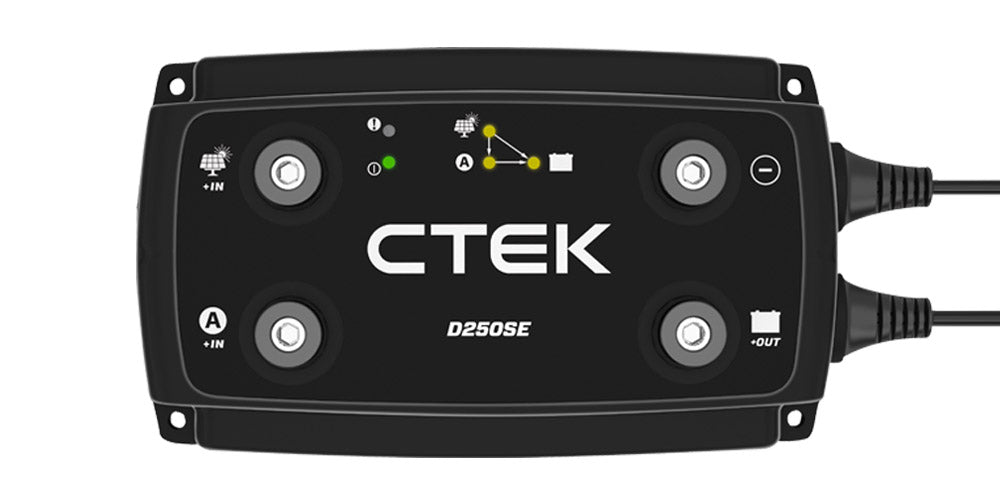

CTEK D250SE On-board Battery Charger

12V | Dual input 20A charger with selectable charge voltages



The D250SE is a fully automatic, 5 step charger that supplies up to 20A of power to any 12V lead-acid or ­lithium* service battery from 40–300Ah. It has ­selectable charge algorithms for AGM and lithium* batteries and can use power through its dual input from alternator and solar panel. When the service battery is fully charged, the D250SE will ­automatically redirect maintenance charge ­power to the starter battery. The D250SE can maintain a stable output up to 20A to vehicles fitted with smart ECU controlled ­alternators and also has a temperature sensor for ­optimised charging, regardless of weather conditions. *) 12V lithium batteries (LiFePO4, Li-Fe, Li-iron, LFP)

• Features

• 20A fully automatic temperature compensated charging for batteries from 40-300Ah while you’re on the move

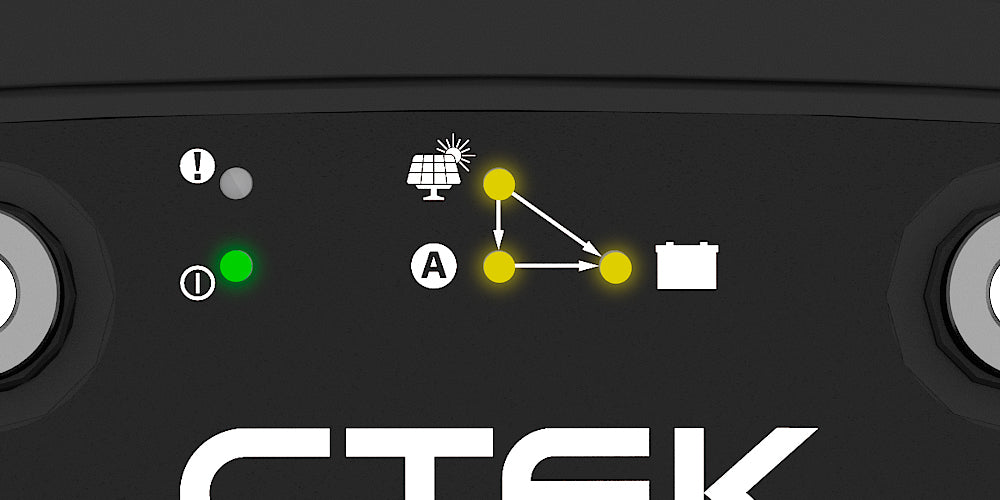

• Dual input (solar and alternator in parallel)
• Smart alternator compatible
• Selectable lithium* and lead-acid mode
• Solar panel regulator with Maximum Power Point Tracking (MPPT)
• Battery separation replacing diodes and VSR relays
• Selectable AGM option – 14.4V or 14.7V
• Maximised charging for better battery life and performance

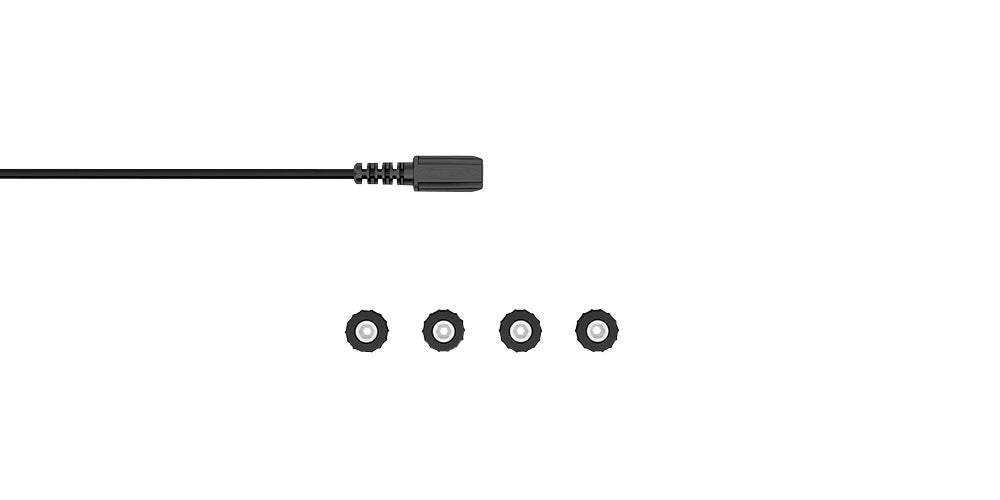

• Temperature sensor to compensate for hot or cold conditions
• Splash and dust proof (IP65)
• Compatible with SMARTPASS 120, SMARTPASS 120S for the ultimate 140A power management solution

• Charging categoryDC charging

• Input11.5–23 V, 25 A

• Output14.4/14.7 V, 20 A, lead-acid battery types. 14.2 V, 20 A, LiFePO₄.

• Battery chemistryLead acid; Lithium-ion

• Battery types12 V:; WET; MF; Ca/Ca; AGM; EFB; GEL; LiFePO₄

• Battery capacity40–300 Ah

• Back current drain*Corresponding to less than 1 Ah/month

• Battery voltage12 V

• Ambient operating temperature-20 ˚C to +50 ˚C (- 4 °F to +122 °F)

• Ripple**Less than 4 %

• Degree of protectionIP65

• Gross weight (unit in box)0.9 kg

• Dimensions (L x W x H)192 x 110 x 65 mm

• Net weight (unit with cables)0.7 kg

• MPPTYes
