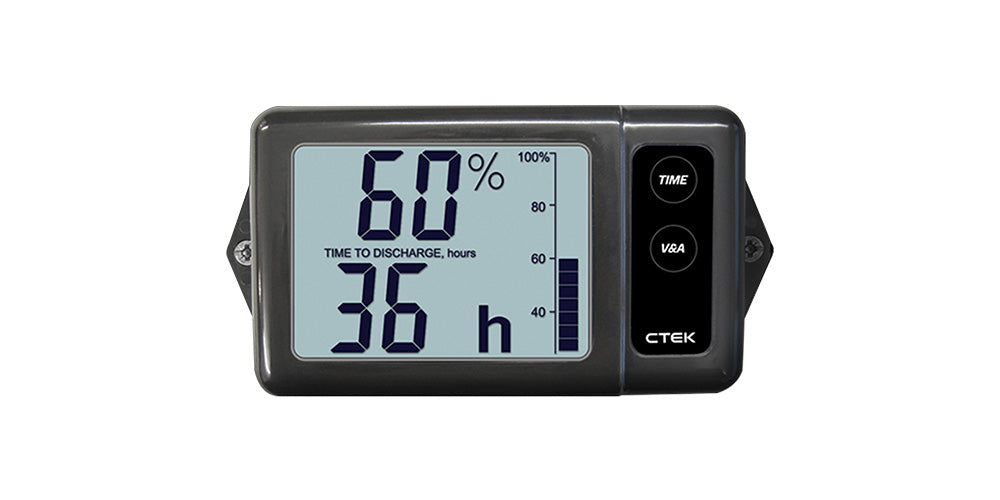

CTEK SYSTEM MONITOR 100A
CTEK SYSTEM MONITOR 100A
Regular price
₱18,250.00 PHP
Regular price
Sale price
₱18,250.00 PHP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The unit continually monitors the voltage, the current (charge and discharge) and calculates the state of charge together with the time remaining to charge or discharge the battery.
Suitable for use with D250SE, I1225 & M25
Included in the package is a 5m cable from display to battery, with ring terminals for shunt, fuse holder and M8 ring terminal to battery.
Features
- Stage of charge in %
- Battery voltage
- Charge and discharge current
- Estimated charge and discharge time remaining
-
Battery chemistryLead acid
-
Battery capacity5-600 Ah
-
Battery voltage12 V
-
Dimensions (L x W x H)125 x 62 x 23 mm
-
Shunt Standard50mV
-
Charge Current100A Max
-
Load Current100A Max
-
Supply current1.5 mA
-
Supply Voltage8–16 VDC
