Front Runner Pickup Truck Load Bed Load Bar Kit / 1475mm(W)

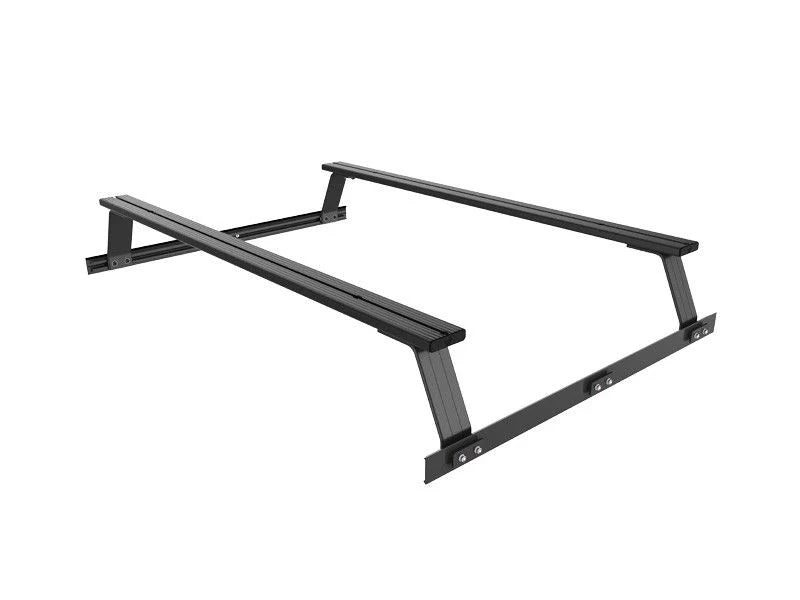

A set of Pickup Bed Load Bars used to transport gear over the bed of your truck when there’s no need for a full Front Runner Rack. This low profile, smaller footprint solution includes 4 188mm Load Bed Legs, 2 1475mm Load Bars, 2 Pickup Load Bed Tracks and fitting instructions - all the components necessary to mount the Front Runner Load Bars to the bed of the vehicle.

Consisting of:

2 x LASS026 - Universal Load Bed Leg / Tall (Pair) - by Front Runner
1 x LBSK017 - Roof Load Bar Pair 1475mm(W) - by Front Runner
1 x TRBU001 - Pickup Load Bed Tracks / 1000mm(L) - by Front Runner


Material used:

Black epoxy powder-coated T6 aluminum
3CR12 Stainless Steel

Approximate Installed Weight 9kg (20lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.

If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.

If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

Width 130mm (5")
Length 1580mm (62")
Height 220mm (9")

Shipping Weight:

Weight 10.6kg (23.3lbs)
